Description

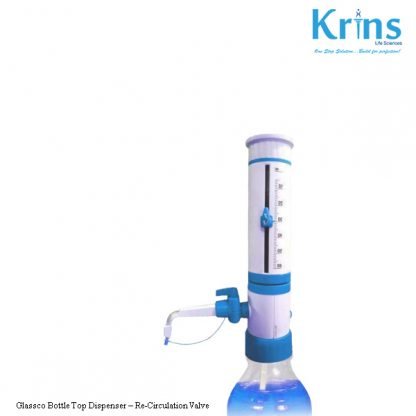

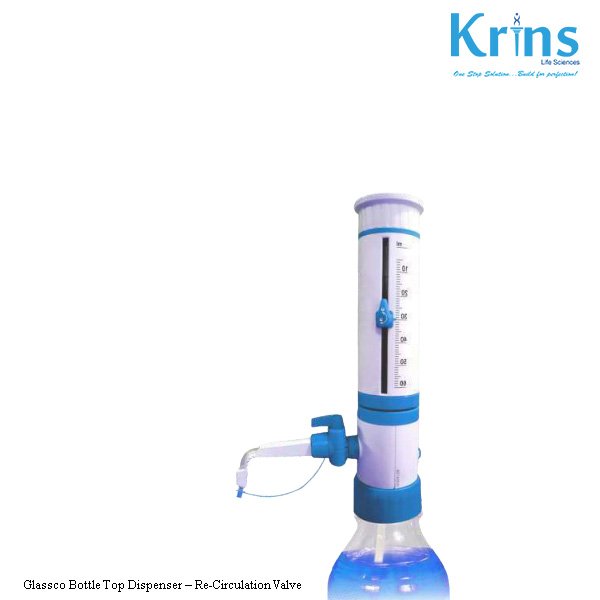

Bottle Top Dispenser – Recirculation Valve
- Fully autoclavable at 121°C, 15 psi for 10-15 mins.
- °CE? mark awarded.
- Smooth & soft plunger for ease of working.
- Highly robust and reliable dispensing technique.
- It has recirculation valve for redirecting the liquid into the bottle for bubble free dispensing without any loss of reagent.
- Adjustable delivery nozzle to facilitate dispensing ease in all demanding laboratory conditions.
- 180? Rotation for easy & effortless volume Setting.
- Specially designed adapter allows 360? rotation, providing full flexibility in working.
- Specially designed, springless, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.
- PTFE Piston with ETP O-Ring ensures very high chemical compatibility & wiper like smooth, effortless piston movement.
- Adaptors to fit most of the laboratory reagent bottles are provided in the following sizes: 28,30,32,36,40 & 45 mm.
- Calibration as per ISO 8655 standards.
Bottle Top Dispenser, Recirculation Valve variants
| Model No. | Vol Range | Increm ent | Ac | uracy | CV | Accuracy | CV | Pack of | |||
| ±% | ± ml | ±% | ± ml | ±% | ± ml | ±% | ± ml | ||||
| KGLS-500.444.01 | 0.25-2.5 ml | 0.05 ml | 0.6 | 0.015 | 0.2 | 0.005 | 0.6 | 0.015 | 0.2 | 0.005 | 1 |
| KGLS-500.444.02 | 0.5-5 ml | 0.1 ml | 0.6 | 0.030 | 0.2 | 0.010 | 0.5 | 0.025 | 0.1 | 0.005 | 1 |
| KGLS-500.444.03 | 1-10 ml | 0.2 ml | 0.6 | 0.060 | 0.2 | 0.020 | 0.5 | 0.050 | 0.1 | 0.010 | 1 |
| KGLS-500.444.04 | 2.5-30 ml | 0.5 ml | 0.6 | 0.180 | 0.2 | 0.060 | 0.5 | 0.150 | 0.1 | 0.030 | 1 |
| KGLS-500.444.05 | 5-60 ml | 1.0 ml | 0.6 | 0.360 | 0.2 | 0.120 | 0.5 | 0.300 | 0.1 | 0.060 | 1 |
| KGLS-500.444.06 | 10-100 ml | 2.0 ml | 0.6 | 0.600 | 0.2 | 0.200 | 0.5 | 0.500 | 0.1 | 0.100 | 1 |
