HY10.H Stainless Steel Multifunctional Scales

$140.00

SKU: N/A Category:

Description

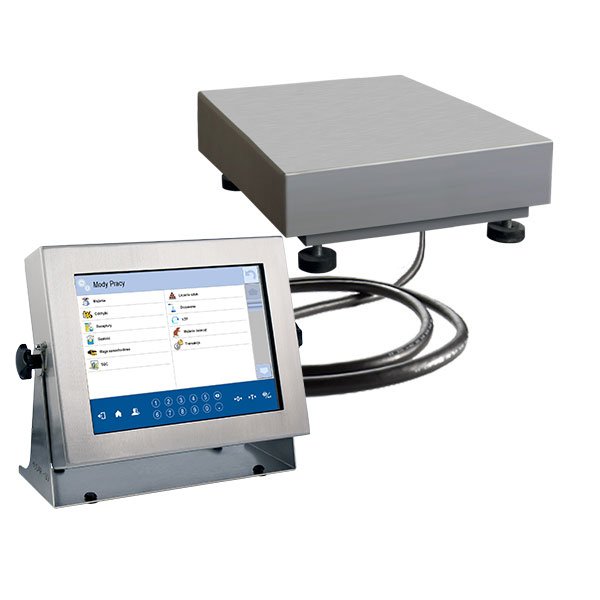

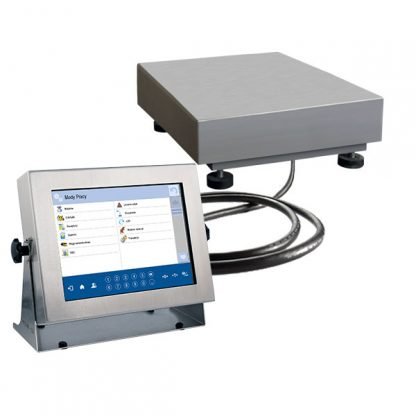

Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions.
The HY10 scales features a terminal PUE HY10 series in stainless steel housing and a stainless steel weighing platform.
The HY10 series scales is made of stainless steel OH18N9 including the weighing platform, and it is equipped with 10,1?colourful touch screen display, keyboard with numeric and function keys.
The scales enables cooperation with an additional weighing platforms.
Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series:
  • programmable display and function keys,
  • designing custom printout templates,
  • designing text data indicated on terminal display.
Multifunctional scales HY10 series is offered with a terminal connected to a weighing platform through a cable.
Scales HY10 series is available in dual range version on surcharge.



Product name
Maximum capacity [Max]
Readability [d]
Weighing pan dimensions
KR HY10.3.H1.K 3 kg 1 g 150×200 mm
KR HY10.6.H2.K 6 kg 2 g 250×300 mm
KR HY10.15.H3.K 15 kg 5 g 410?410 mm
KR HY10.15.H2.K 15 kg 5 g 250×300 mm
KR HY10.30.H3.K 30 kg 10 g 410?410 mm
KR HY10.60.H3.K 60 kg 20 g 410?410 mm
KR HY10.60.H4.K 60 kg 20 g 500?500 mm
KR HY10.60.H5.K 60 kg 20 g 600?600 mm
KR HY10.60.H3/5.K 60 kg 20 g 400?600 mm
KR HY10.150.H3.K 150 kg 50 g 410?410 mm
KR HY10.150.H5.K 150 kg 50 g 600?600 mm
KR HY10.150.H4.K 150 kg 50 g 500?500 mm
KR HY10.150.H6.K 150 kg 50 g 800?800 mm
KR HY10.150.H3/5.K 150 kg 50 g 400?600 mm
KR HY10.300.H5.K 300 kg 100 g 600?600 mm
KR HY10.300.H6.K 300 kg 100 g 800?800 mm



Additional information

product name

KR HY10.3.H1.K, KR HY10.6.H2.K, KR HY10.15.H3.K, KR HY10.15.H2.K, KR HY10.30.H3.K, KR HY10.60.H3.K, KR HY10.60.H4.K, KR HY10.60.H5.K, KR HY10.60.H3/5.K, KR HY10.150.H3.K, KR HY10.150.H5.K, KR HY10.150.H4.K, KR HY10.150.H6.K, KR HY10.150.H3/5.K, KR HY10.300.H5.K, KR HY10.300.H6.K
