Description

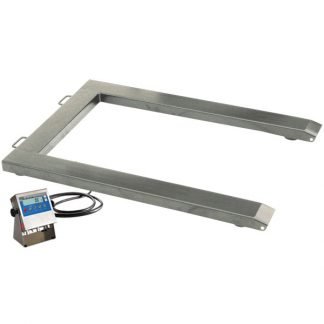

Pallet scales is stable and proved 4 load cell construction designed for weighing pallets. The load to be weighed can be placed on the platform by a standard fork-lift truck. The pallet scales WPT/4P/C series is manufactured in mild steel powder coated version.
The WPT/4P series features wheels and handles for easy transporting the scales to its place of use. The scales comes standard with an indicator PUE C/31 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.
Scales is available in dual range version on surcharge.
|
Product name
|
Maximum capacity [Max]
|
Readability [d]
|
Weighing pan dimensions
|
| KR WPT/4P 600C | 600 kg | 200 g | 840?1200 mm |
| KR WPT/4P 1500C | 1500 kg | 500 g | 840?1200 mm |
| KR WPT/4P 2000C | 2000 kg | 1000 g | 840?1200 mm |
| KR WPT/4P 3000C | 3000 kg | 1000 g | 840?1200 mm |
