Description

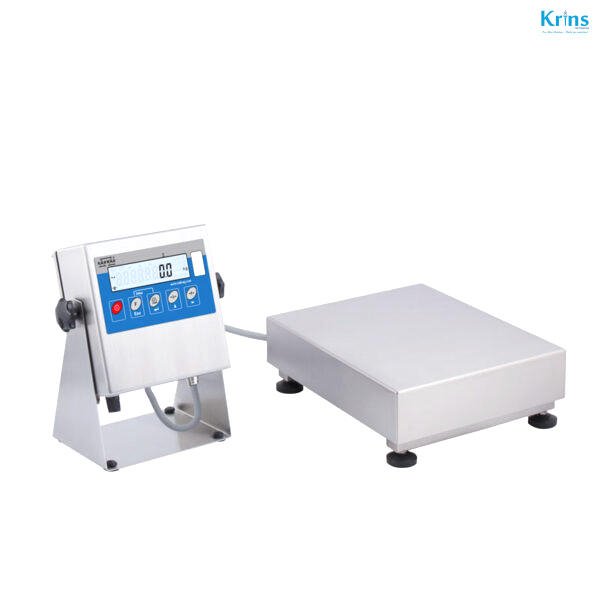

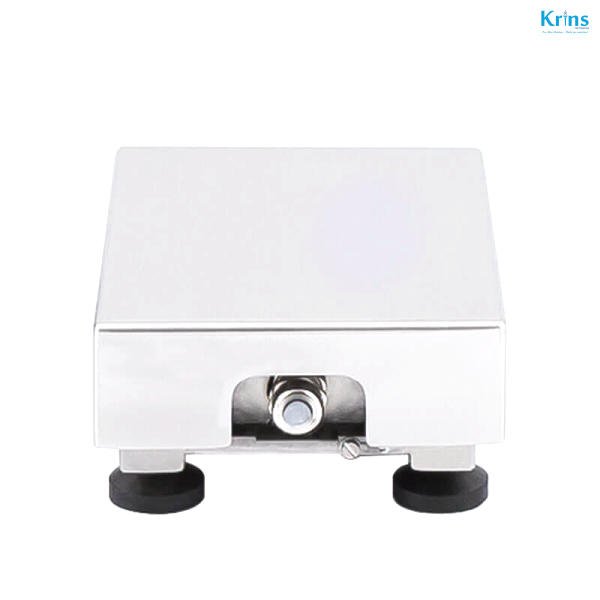

Waterproof platform scales is designed to operate in humid conditions and direct contact with water.
The WPT/H series features LCD display and stainless steel weighing platform. All the elements of scales construction are made of stainless steel OH18N9.
The indicator PUE C/31H series is installed on a pillar. Optionally, the head is installed on a cable for hanging it on a wall.
Scales WPT/H series is powered from mains, RS 232 slot comes as standard. On client request, the waterproof platform scales can be manufactured with upgraded antirust coating.
Scales WPT/H series is available in dual range version on surcharge.
|
Product name
|
Maximum capacity [Max]
|
Readability [d]
|
Weighing pan dimensions |
| KR WPT 3/H1/K | 3 kg | 1 g | 200?150 mm |
| KR WPT 3/H1 | 3 kg | 1 g | 200?150 mm |
| KR WPT 6/H2 | 6 kg | 2 g | 250×300 mm |
| KR WPT 6/H2/K | 6 kg | 2 g | 250×300 mm |
| KR WPT 15/H2/K | 15 kg | 5 g | 250×300 mm |
| KR WPT 15/H3 | 15 kg | 5 g | 410?410 mm |
| KR WPT 15/H2 | 15 kg | 5 g | 250×300 mm |
| KR WPT 15/H3/K | 15 kg | 5 g | 410?410 mm |
| KR WPT 30/H3/K | 30 kg | 10 g | 410?410 mm |
| KR WPT 30/H3 | 30 kg | 10 g | 410?410 mm |
| KR WPT 60/H4/K | 60 kg | 20 g | 500?500 mm |
| KR WPT 60/H3/5 | 60 kg | 20 g | 400?600 mm |
| KR WPT 60/H3/5/K | 60 kg | 20 g | 400?600 mm |
| KR WPT 60/H4 | 60 kg | 20 g | 500?500 mm |
| KR WPT 60/H5 | 60 kg | 20 g | 600?600 mm |
| KR WPT 60/H5/K | 60 kg | 20 g | 600?600 mm |
| KR WPT 60/H3/K | 60 kg | 20 g | 410?410 mm |
| KR WPT 60/H3 | 60 kg | 20 g | 410?410 mm |
| KR WPT 150/H3/K | 150 kg | 50 g | 410?410 mm |
| KR WPT 150/H4/K | 150 kg | 50 g | 500?500 mm |
| KR WPT 150/H6/K | 150 kg | 50 g | 800?800 mm |
| KR WPT 150/H3 | 150 kg | 50 g | 410?410 mm |
| KR WPT 150/H6 | 150 kg | 50 g | 800?800 mm |
| KR WPT 150/H4 | 150 kg | 50 g | 500?500 mm |
| KR WPT 150/H5 | 150 kg | 50 g | 600?600 mm |
| KR WPT 150/H3/5 | 150 kg | 50 g | 400?600 mm |
| KR WPT 150/H5/K | 150 kg | 50 g | 600?600 mm |
| KR WPT 150/H3/5/K | 150 kg | 50 g | 400?600 mm |
| KR WPT 300/H5 | 300 kg | 100 g | 600?600 mm |
| KR WPT 300/H6 | 300 kg | 100 g | 800?800 mm |
| KR WPT 300/H5/K | 300 kg | 100 g | 600?600 mm |
| KR WPT 300/H6/K | 300 kg | 100 g | 800?800 mm |
